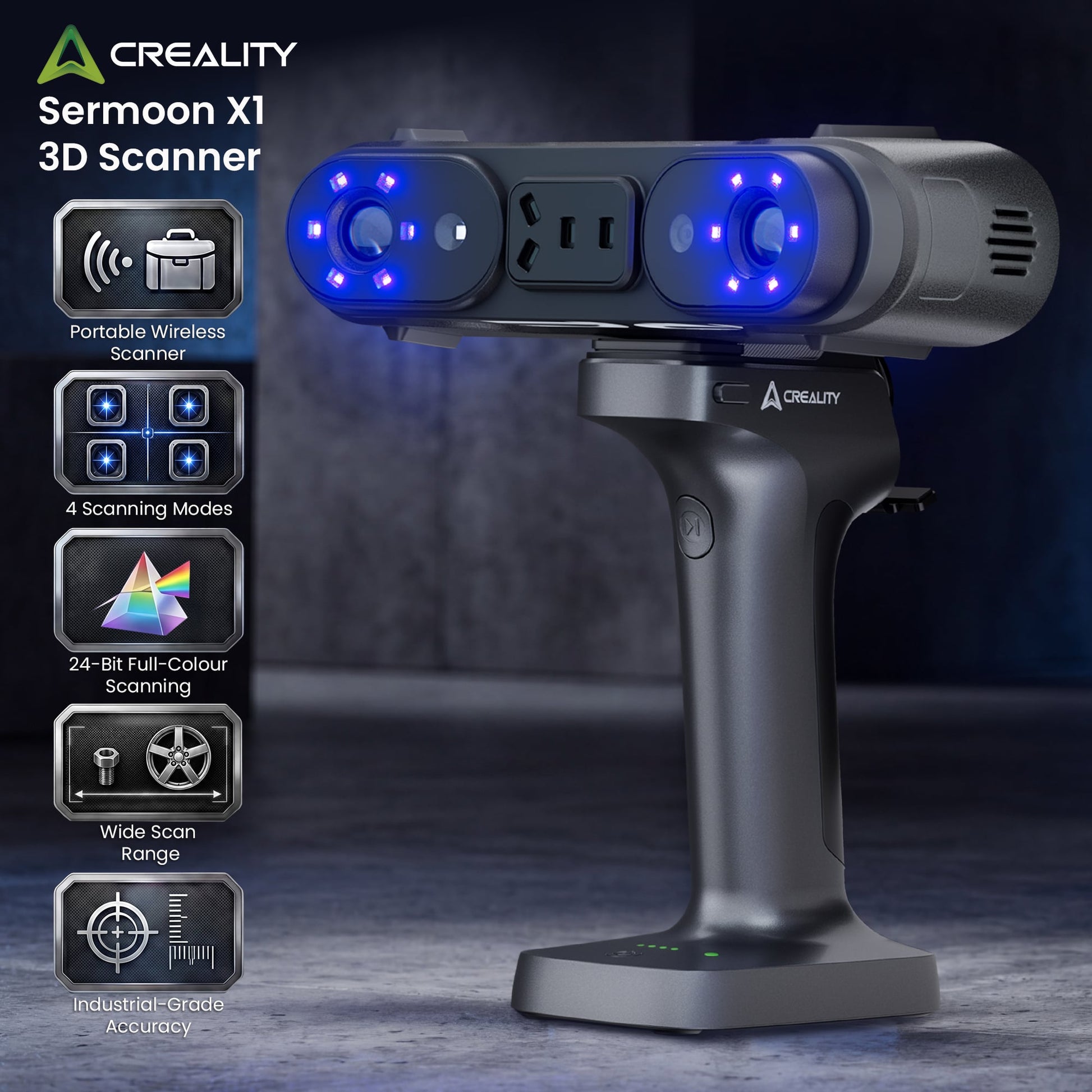

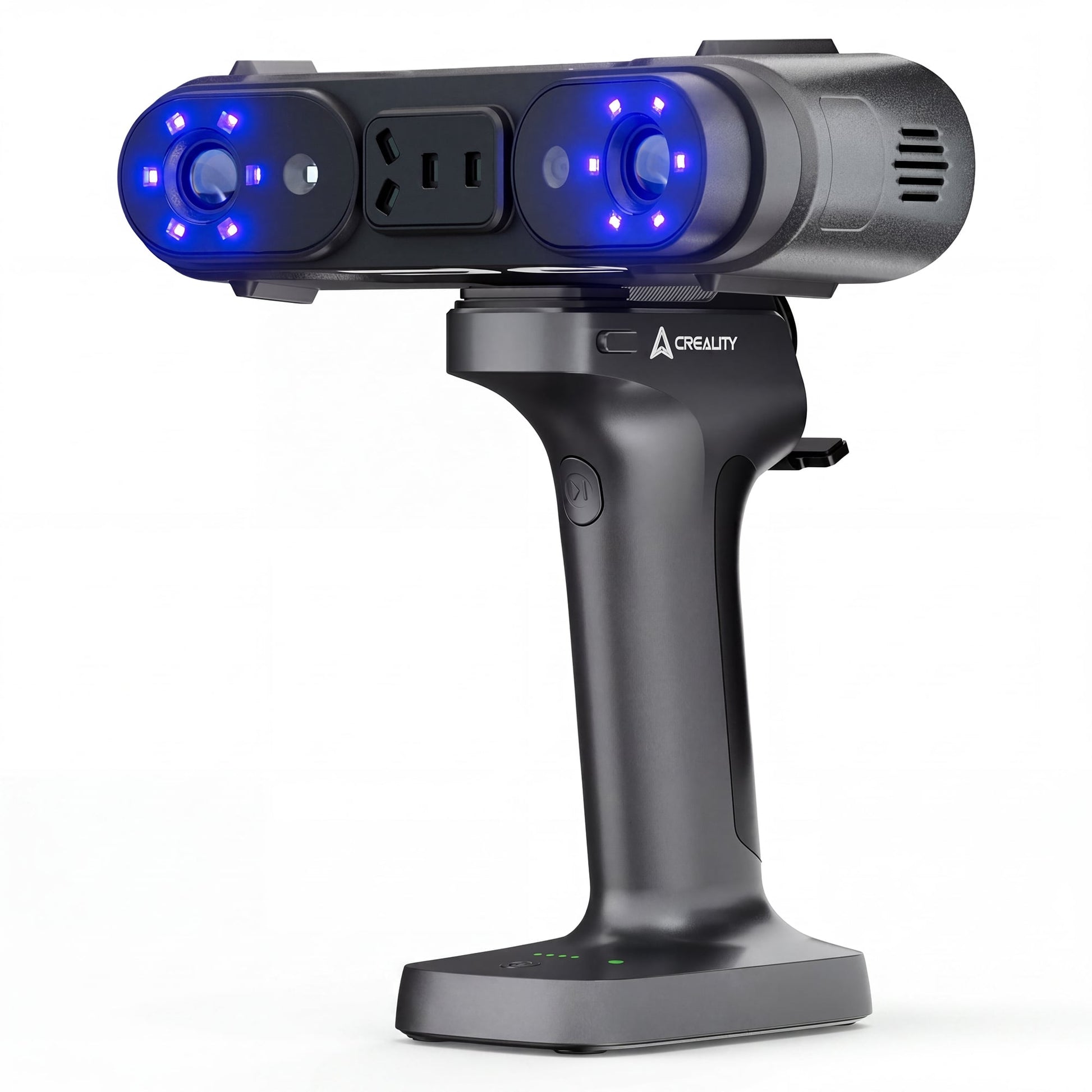

Creality Sermoon X1 Industrial 3D Scanner with Full-Colour Scanning
Creality Sermoon X1 Industrial 3D Scanner with Full-Colour Scanning
Regular price
$17,049.00
Regular price
Sale price
$17,049.00
Unit price
/
per
Tax included.
Couldn't load pickup availability
Take professional scanning performance further with the Creality Sermoon X1 3D Scanner. Combining blue laser technology with NIR structured light, the X1 delivers industrial-grade precision with volumetric accuracy up to 0.02mm + 0.04mm/m. High-speed scanning up to 90FPS, full-colour texture capture and multiple laser modes allow accurate scanning of everything from tiny components to large objects up to 4000mm. Designed for reverse engineering, inspection and professional modelling workflows.
Key Features:
Key Features:
- Features:
- Industrial-grade 3D scanner
- Metrology-grade volumetric accuracy up to 0.02mm + 0.04mm/m
- Built-in photogrammetry with dual scale bars
- 34 blue laser lines for large object scanning
- 7 parallel blue laser lines for intricate details
- Single blue laser line for deep-hole scanning
- NIR structured light technology
- Scans objects from 5mm to 4000mm
- Up to 90FPS scanning speed
- Full-colour texture scanning with 2MP RGB camera
- Wi-Fi 6 wireless data transmission
- 5000mAh battery with 4+ hour runtime
- CNC-machined all-metal unibody construction
- Specifications/Attributes:
- Size: 21.6 x 7.4 x 5.1cm
- Scanning Mode
- Deep Hole Scanning: Single Laser Line
- Detailed Scanning: 7 Parallel Laser Lines
- High Speed Scanning: 34 Cross Laser Lines
- Marker-Free Scanning: NIR (Binocular Structured Light)
- Accuracy: Up to 0.02mm 1 | Up to 0.05mm for Marker-Free Scanning
- Volumetric Accuracy: 0.02mm+0.04mm/m 0.02mm+0.03mm/m (with Scale Bar) | 0.05mm+0.1mm/m for Marker-Free Scannning
- Scanning Rate: 84,000 measurements/s | 756,000 measurements/s | 1,734,000 measurements/s | 5,000,000 measurements/s
- Scanning Speed
- Deep Hole and Detailed Scanning: Up to 90FPS
- High Speed Scanning: Up to 85FPS
- Marker-Free Scanning: Up to 30FPS
- 3D Resolution: 0.05-2mm | 0.1-2mm for Marker-Free Scanning
- Photogrammetry: Include Photogrammetry Mode (with 2X magnetic carbon fiber scale bar)
- Min. Scan Volume: 5mm x 5mm x 5mm | 150mm x 150mm x 150mm for Marker-Free Scanning
- Single Capture Range:
- 215mm x 167mm at 200mm
- 325mm x 323mm at 300mm
- 434mm x 394mm at 400mm
- 542mm x 463mm at 500mm
- 650mm x 531mm at 600mm
