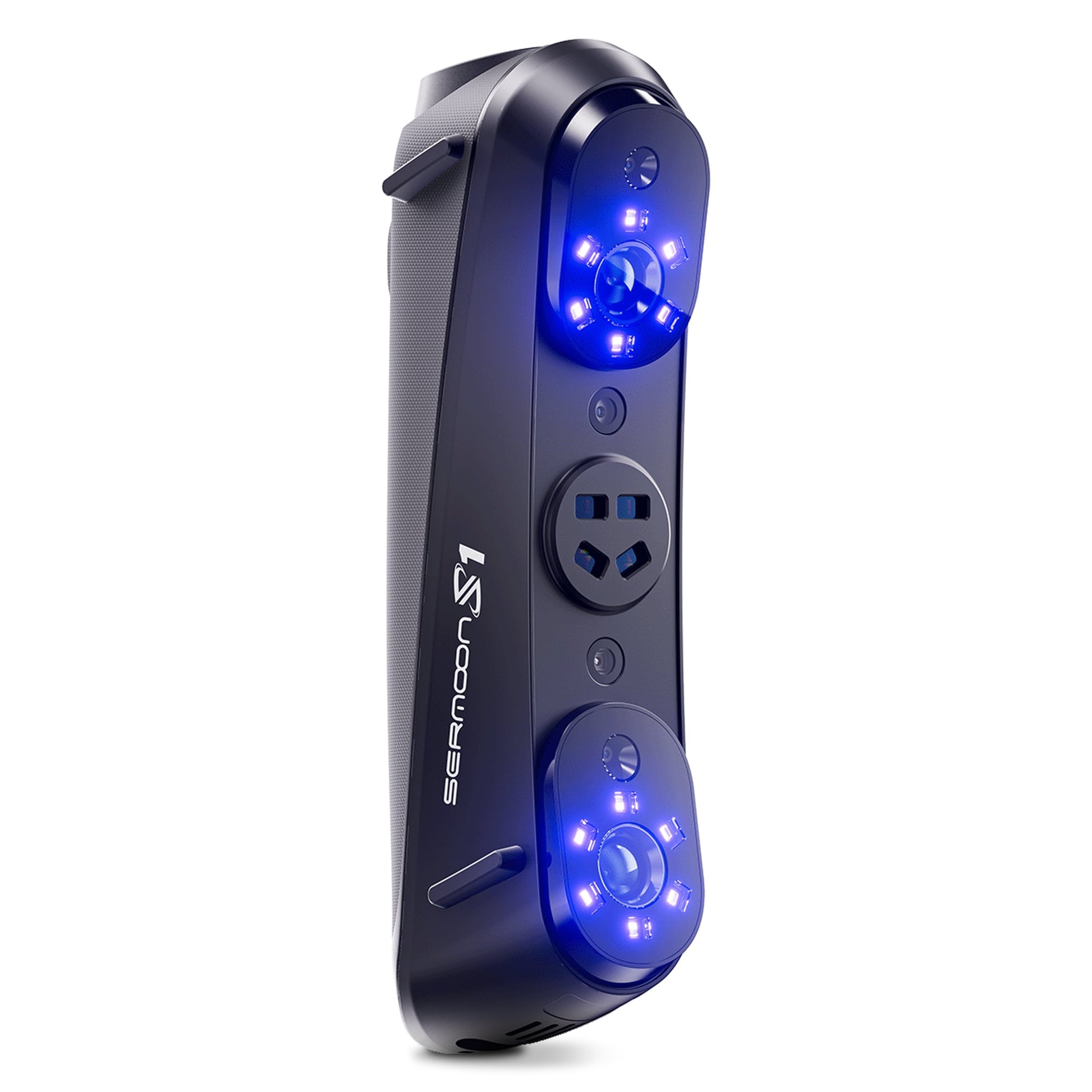

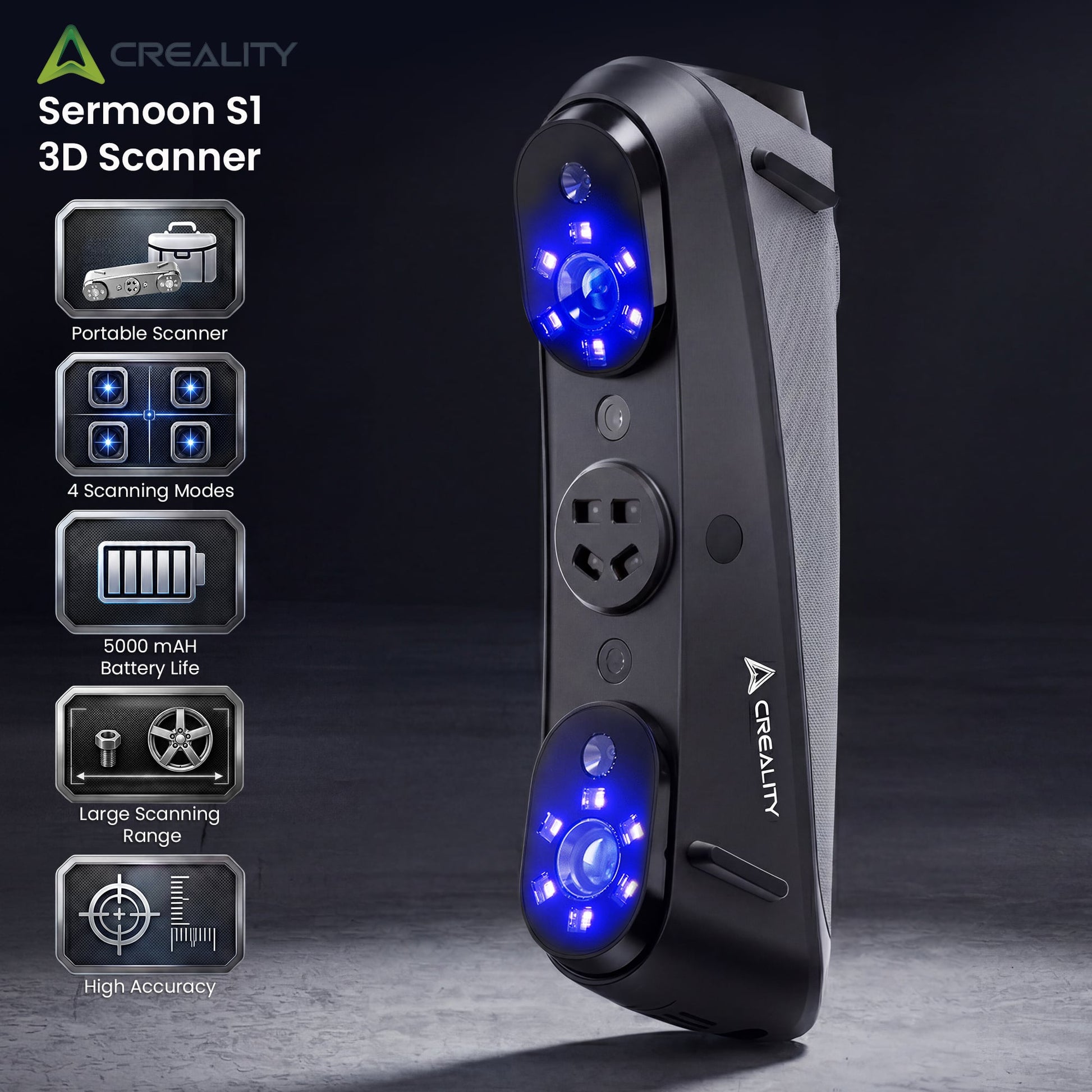

Creality Sermoon S1 Professional 3D Scanner with NIR Structured Light

Capture highly detailed scans with the Creality Sermoon S1 3D Scanner, built for professional precision and workflow efficiency. Featuring a hybrid multi-light system with blue laser technology and NIR structured light, it delivers up to 0.02mm accuracy and scanning speeds up to 90FPS. Designed to handle objects from 5mm to 4000mm, the Sermoon S1 combines AI-powered software and versatile scanning modes for reverse engineering, inspection and advanced 3D modelling applications.
Key Features:

• Features:
• Multi-light system with 1 + 7 + 34 blue laser lines + NIR structured light
• Up to 0.02mm scanning accuracy
• Volumetric accuracy of 0.02mm + 0.08mm/m
• Scanning speed up to 90FPS
• Four-lens stereo vision system
• Scan objects from 5mm to 4000mm
• Single-line laser mode for deep holes and complex surfaces
• Supports marker-free and spray-free scanning
• AI-powered scanning software
• Seamless CAD, CAM and 3D printing workflow compatibility
• Indoor and outdoor scanning capability
• Handles dark and complex surfaces effectively
• Specifications/Attributes:
• Size: 22.5 x 5.3 x 7.6cm
• Scanning Mode
• Single Blue Laser Line
• 7 Parallel Blue Laser Lines
• 34 Cross Blue Laser Lines
• Close-Range Infrared Structured Light
• Long-Range Infrared Structured Light
• Accuracy: Up to 0.02mm 1 | Up to 0.075mm for Close/Long Range Infrared Structured Light
• Volumetric Accuracy: 0.02mm+0.08mm/m | 0.075mm+0.1mm/m for Close/Long Range Infrared Structured Light
• Scanning Rate:
• 108,000 measurements/s
• 756,000 measurements/s
• 1,428,000 measurements/s
• 4,600,000 measurements/s for Close/Long Range Infrared Structured Light
• 3D Resolution: 0.05-2mm | 0.1-2mm for Close/Long Range Infrared Structured Light
• Scanning Speed: Up to 90FPS | Up to 30FPS for Close/Long Range Infrared Structured Light
• Min. Scan Volume: 5mm x 5mm x 5mm | 150mm x 150mm x 150mm for Close/Long Range Infrared Structured Light Scanning
• Single Capture Range:
• 205mm x 147mm at 200mm
• 293mm x 217mm at 300mm
• 355mm x 289mm at 400mm
• 417mm x 361mm at 500mm
• 506mm x 433mm at 600mm
